Standard RTD Sensor

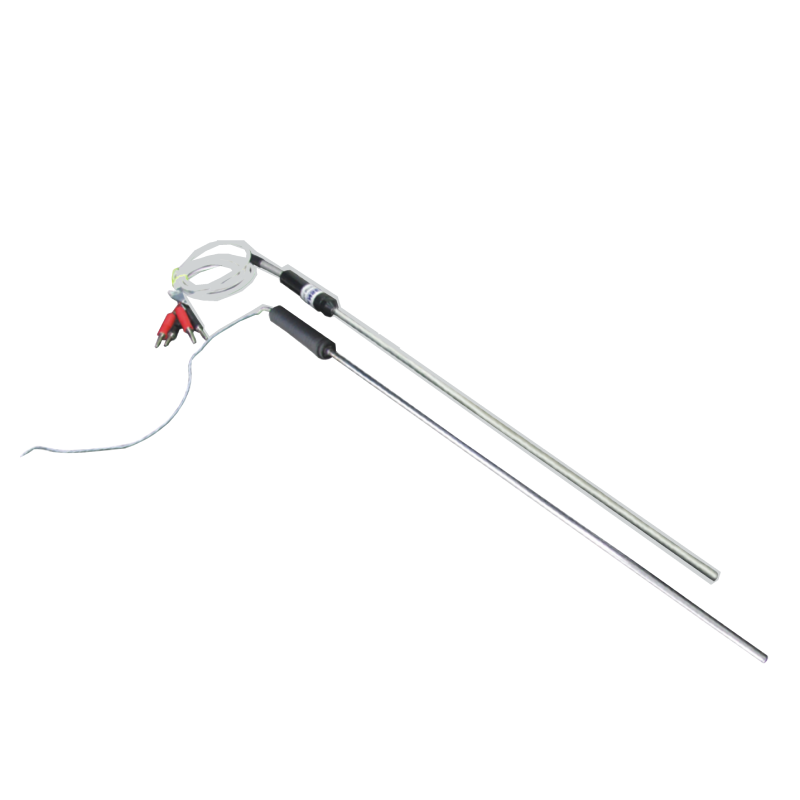

SSPRT

SSPRT is Highly Accurate Platinum Resistance Thermometer (PT 100) offer the temperature range of 200 to 660°C. SSPRT gives the benefit of high accuracy and low drift in a solid metal case. Wire wound resistance element give good stability with low temperature coefficient and high accuracy.

SSPRT is constructed with a 6 mm outer diameter of Inconel sheath of high durability. SSPRT is available in different accuracies and length. A special powder mixture is filled into the sensor capsule to support the element from mechanical shocks. This model is supplied with 5 point calibration or fixed point ITS-90 Chart with smaller uncertainty

Application

Used as a reference standard to calibrate various Temperature probes, Drywell calibrator, Liquid bath, Etc.,. In all type of Industries and calibration Laboratories.

Features

  • Temperature range from -200 to 660°C
  • 6mm O.D & 450mm Length
  • Outer sheath SS 316 / Inconel
  • High accuracy & Stability
  • Manufactured & tested under strict quality control standards
  • Cycled to stability
  • Fast response
  • Low Drift
  • ISO/IEC 17025 Accredited calibration certificate.

Technical Specifications

  • Model : SSPRT
  • Type : PT 100
  • Temperature Range*
    (a) : -200 to 660°C
    (b) : -80 to 600°C
  • Temperature co-efficient : 0.00385 Ω / Ω /"C
  • Stability : RO typical drift < 0.05°C after 100 hrs at 600 °C
  • Thermal shock : RO typical drift < 0.01°C after 100 times from 25 to 600 °C
  • Vibration : withstand 10 to 2000Hz at 20 G's
  • Recommended measuring current : 1mA
  • Sheath Diameter : 6mm
  • Sheath Length : 450mm
  • Cable Length : 1500mm
  • Outer Sheath : SS-316
  • End Connection : Flying Lead, 4 wire
  • Case dimension (Approx.) : 80mm(H) x 750mm(W) x 80mm(D)
  • Gross weight (Approx.) : 2.75kg (6 lbs)
  • Calibration Option : 5 point NABL (or) Fixed point ITS-90 Resistance Vs Temperature chart
