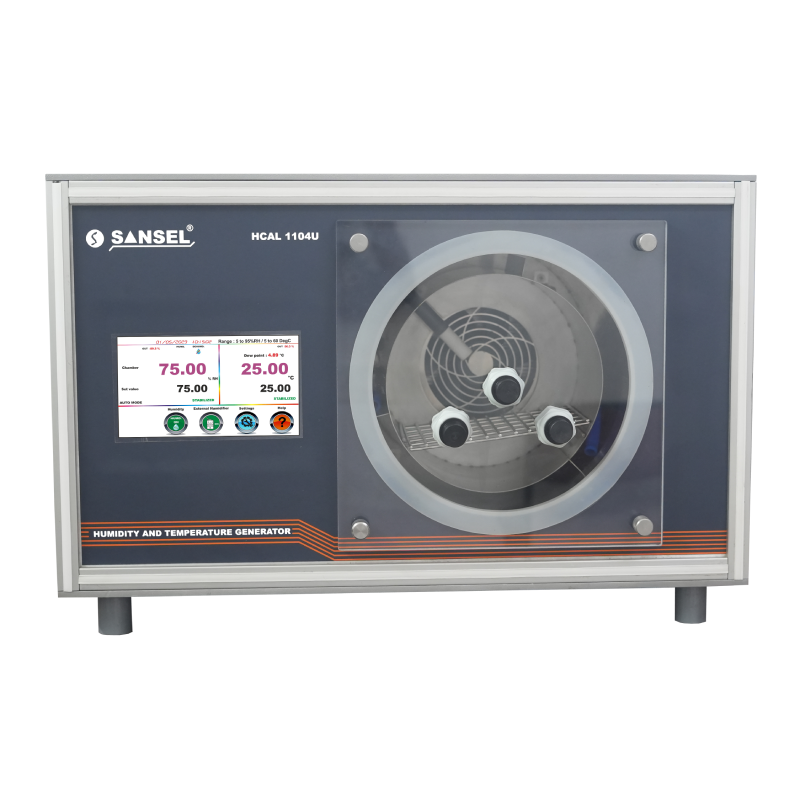

Precision Humidity and Temperature Generator

Model No: HCAL 1140U

The HCAL 1104U is a precision generator of controlled Humidity and Temperature environment inside the chamber. It has huge volume of chamber size to perform a rapid and easy calibration of multiple portable instruments, sensors, transmitter, data logger of different manufacturers. The HCAL 1104U is to generate range from 5°C to 60°C / 3% RH to 95% RH and Psychometric Calculated Dew point indication range from -30°C to 45°C. It has an advantage of external Humidifier for easy maintenance and refilling of water, Semi portable and onsite transportable.

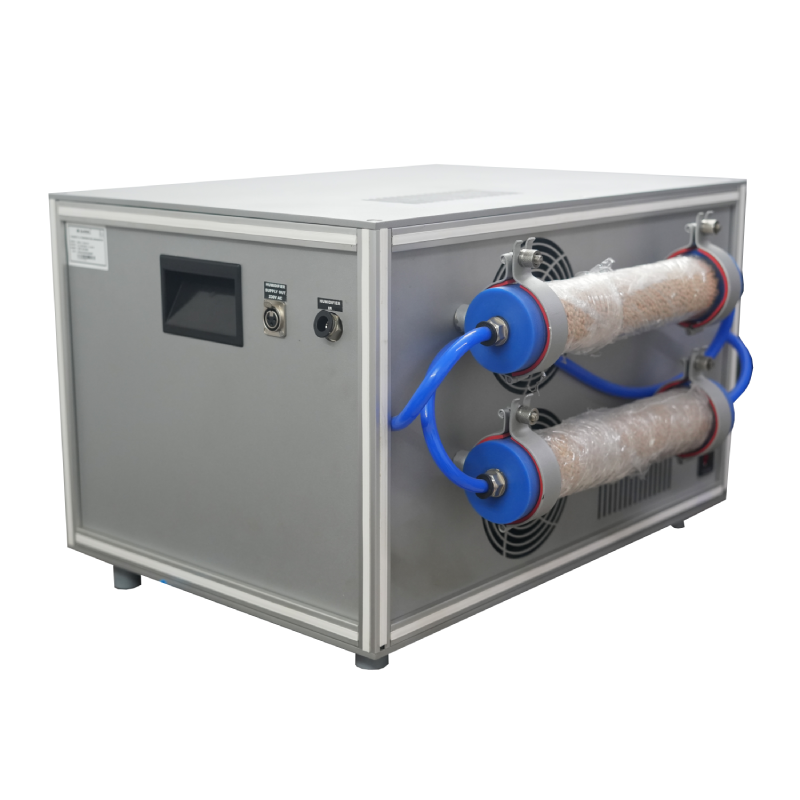

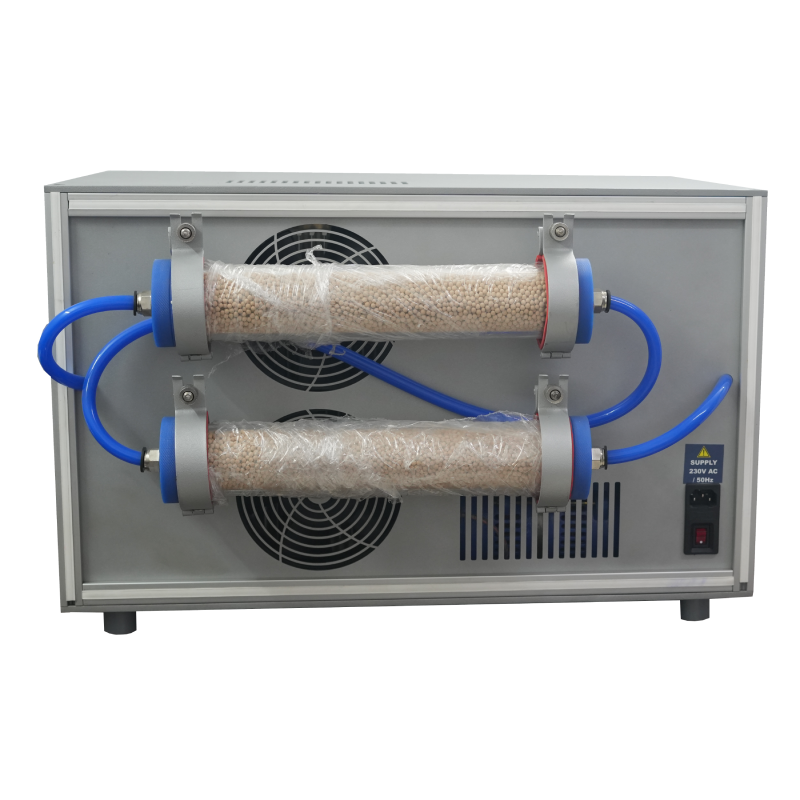

The HCAL 1104U working in the principle of mixed flow method for generating the Humidity. A desiccant cell is used to De-Humidify the chamber for low Humidity and Humidifier generates high Humidity. A solid state peltier element is used for heating and cooling the chamber. The HCAL 1104U improved version has metrology level performance in terms of Control stability and uniformity gradients.

Applications
  • Calibration & Testing Laboratory
  • Pharmaceutical
  • Sensor Manufacturers
  • Research Institutes, etc.,.

Features

  • 7” True colour TFT Touch screen display
  • Wide range from 3% RH to 95% RH & 5°C to 60°C
  • Dew point temperature indication range -30°C to 45°C
  • Display Resolution 0.01%RH / 0.01°C
  • Improved design to provide metrology level performance in terms of chamber stability and uniformity gradient
  • Psychometric converted indication of Dew point, Wet bulb temperature etc.,.
  • Fast raising and Quick settling
  • Large chamber size
  • Replaceable front door to suitable for multi brand probe & portable indicator calibration
  • Semi portable and onsite transportable
  • Ideal for lab and field calibration
  • Solid state heating & cooling technology
  • ISO/IEC 17025 Accredited calibration certificate
  • Optional calibration software to record, Data analysis & generate calibration reports

Technical Specifications

MODEL HCAL 1104U
Display 7” True colour TFT LCD Display with Touch screen
Control Range* 5 to 60°C / 3 to 95 % RH
Dew point Temperature range (psychometric calculated) -30°C to 45°C
Psychometric calculated indication Dew / Frost point ( Dp / Fp )
Wet Bulb Temperature ( Tw )
Vapour partial pressure ( E )
Vapour Saturation pressure ( Ew )
Mixing ratio by weight (dry) ( g / kg )
Enthalpy ( H ) ( KJ / kg )
Specific Humidity (moisture) ( g / kg )
Absolute Humidity (moisture) ( g / m³ )
Volume mixing ratio (dry) ( ppm )
Calculation method WMO method
Resolution 0.01 °C / 0.01% RH
Display stability Better than ± 0.03 °C / ± 0.15% RH
Chamber stability @25°C **
Temperature:
Humidity:

± 0.2°C
± 0.5 % RH
Chamber Uniformity @25°C**
Temperature:
Humidity:
± 0.2°C
± 0.5 % RH
Test sensor insert port Inter changeable Acrylic door is provided on front side of the chamber with pg21 gland (cable or sensor size range from 13 to 18mm) x 3nos

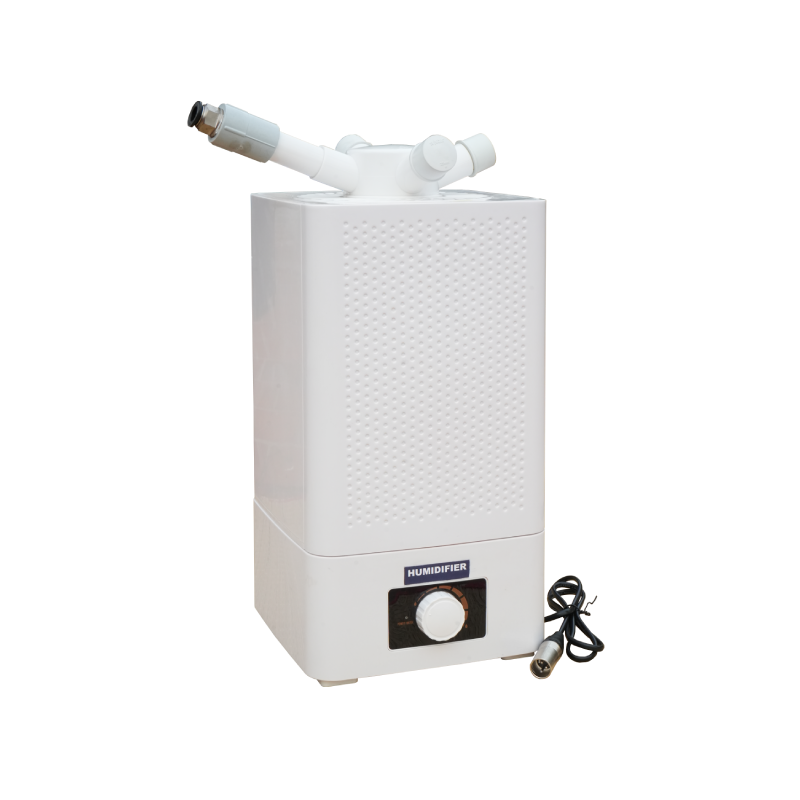

External Humidifier Water tank capacity 6 litres (approx.) (NOTE : 3 liter filling is enough for our application)
Humidifier Liquid Distilled water
Humidifying Timer 2 %RH / sec (50 to 90 % RH)
Dehumidifying Time 6 %RH / sec (50 to 10 % RH)
Test chamber area 230mm DIA x 170mm D (Approx)
Power supply 230V AC ± 10% / 50Hz (Optional 110V AC)
Power Consumption 1000 VA
Construction Inner chamber SS 310 / outer MS powder coating
Overall Dimension 436mm L x 676mm W x 368mm H (Approx.)
Weight 44 kg (without Accessories) + 6 kg (standard accessories) (Approx.)
